# GScan™ series
Smart Colorful 3D Scanner GScan™
GScan is a multi-function handled 3D white light scanner. GScan can quickly acquire colorful 3D data of real objects with high precision. Non-contact scanning, no need to stick any positioning targets, color matching the 3D data automatically. Ensure obtaining an efficient and reliable 3D data.Handled scanning, easy to carry and multi-function scanning provides you with a wise choice of 3D digitized solution.
Features
REALISTIC COLOR
High color reproduction
PORTABLE
Total weigh 0.56kg,easy to cary
USER-FRIENDLY
Easy operation 10 minutes to master to operation
MULTI-FUNCTION SCANNING
Handheld or fixed scanning modes
FAST SCANNING RATE
3,100,000 measurements/s Quickly acquire 3d data
VISUALIZED OPERATION
PC displays real-time scanning data
Application Areas

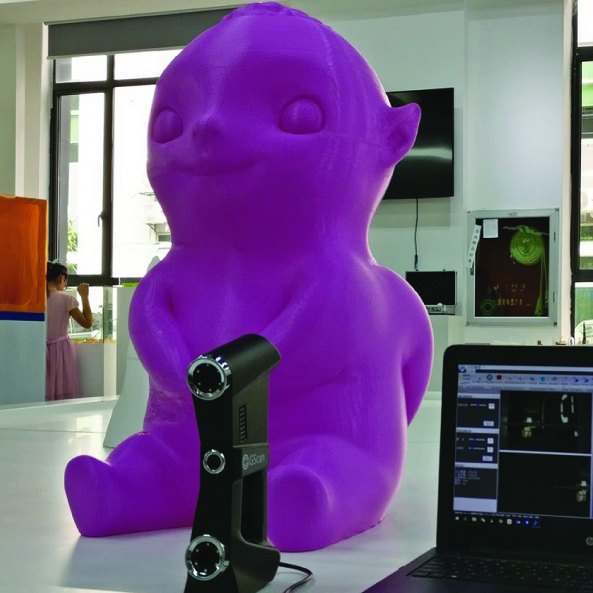

3D Printing
Artistic design
Human body scanning
Museology and furnishings
Medical and healthcare
Specification
| SCAN MODE | HAND-HELD | FIXED |
|---|---|---|
| PROJECTION MODE | Speckle Projection | Raster Projection |
| ACCURACY | up to 0.1 mm | up to 0.05 mm |
| VOLUME ACCURACY | 0.3 mm/m | Not applicable |
| MEASURING RATE | 550,000 measure/s | Single scan time ＜ 2s |
| RESOLUTION | 0.1 mm | 0.1 mm |
| RECOMMENDED OBJECT SIZE | 0.15 - 4 m | 0.03 - 0.25 m |
| REFERENCE DISTANCE | 400 mm | |
| DEPTH OF FIELD | 200 mm | |
| SINGLE SCANNING AREA | 250 × 185 mm | |
| LIGHT SOURCE | White light ( LED) | |
| TEXTURE MAPPING ACCURACY | 1 Pixel | |
| TEXTURE RESOLUTION | 1.3MP | |
| COLORS | 24BPP | |
| VIDEO FRAME RATE | 10FPS~16FPS | |
| CONNECTION STANDARD | USB 3.0 | |
| SYSTEM SUPPORT | Win7, ,Win10, 64 bit | |
| WEIGHT | 0.65 kg | |
| DIMENSIONS | 250 × 140 × 50 mm | |
| OPERATING TEMPERATURE RANGE | 0 - 40 °C | |
| OPERATING HUMIDITY RANGE | 10 - 90 % | |
| OUTPUT FORMATS | .stl, .obj, .wrl, .ply, .txt, . xyz, .asc etc., Customizable | |
| COMPATIBLE SOFTWARE | 3DSystem (Geomagic Solutions), InnovMetric Software (PolyWorks) 、 Dassault Systemes (CATIAVS and SolidWorks) 、 PTC (Pro/ENGINEER) 、 Siemens (NX and Solid Edge) 、 Autoesk (Inventor 、 Alias 、 3ds Max 、 Maya 、 Softimage) | |
