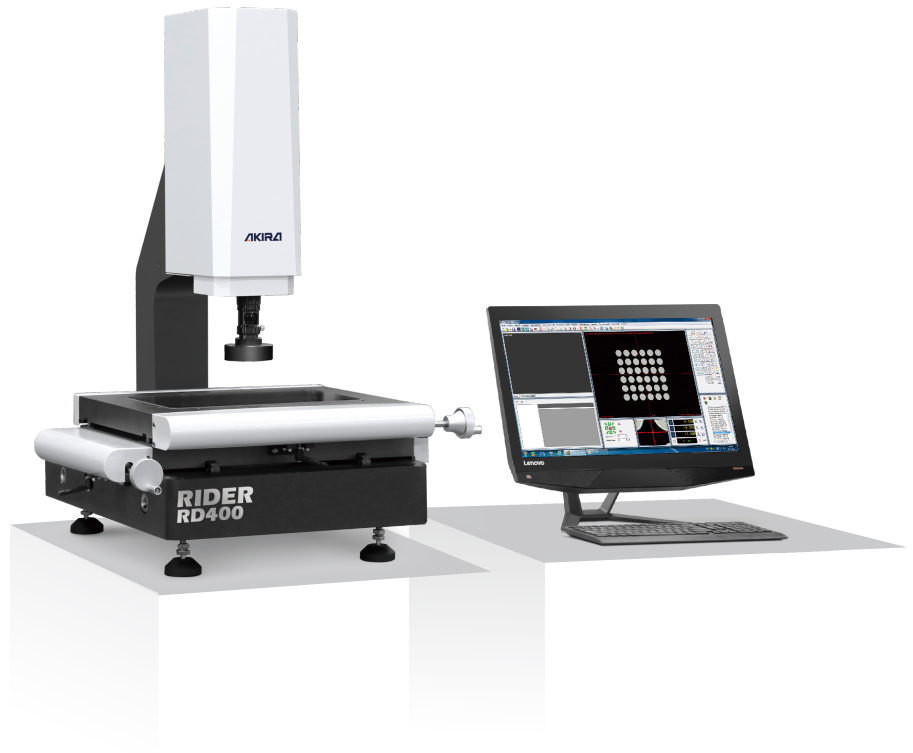

RIDER Series Manual Vision Measurement Machine
The RIDER series manual vision measurement machine provides extra measuring function and user experience to customers over normal vision measuring products. We use light weight design on the machine frame, makes the structure more slim, but keep the high rigidity and stability, allows the users to get the max measuring range in smallest space. The RIDER series is using high accuracy linear slide way, which is totally different from the cross slide way used for other manual VMM, ensures much more stable and accurate transmitting of the work stage, also voiding the potential risk of the shorten traveling range which cost by the cross slide way.
Wider application
Thanks to the light weight structure design, the RIDER series vision measurement machine is offering much wider application range. The RIDER series is able to be used in labs, QC rooms, even R&D center which has really limit space as a desk top precise measuring device. In the mean time, the outstanding measuring accuracy of the RIDER series makes it more adaptable to strict measuring requirement. It is a powerful measuring device for metals, electronics, 3C products, PCB or plastic industries etc.
Specification
| Models | RD 200 | RD 300 | RD 400 | RD 500 | |
|---|---|---|---|---|---|
| Dimension(mm)(L x W x H) | 550 x 540 x 930 | 600 x 740 x 980 | 700 x 840 x 980 | 800 x 940 x 980 | |
| Measuring Rang(mm)(X x Y x Z) | 200 x 100 x 150 | 300 x 200 x 200 | 400 x 300 x 200 | 500 x 400 x 200 | |
| Measuring Accuracy (μm) | 2.5+ L/100 | 2.5+ L/100 | 2.5+ L/100 | 3+L/100 | |
| Repeatability(μm) | 2.5 | 2.5 | 2.5 | 3 | |
| Weight(Kg) | 140 kg | 190 kg | 240 kg | 290 kg | |
| Image & Measuring | Camera | Industrial grade color camera | |||
| Lens | Manual dented zoom lens 0.7- 4 X | ||||
| Magnification | 18-195X (For ref. only. with different camera & lens the magnification will be different. ) | ||||
| Field of view | 8.1 ~1.3mm | ||||
| Working distance | 108mm | ||||
| Linear Scale resolution | 0.5 μm | ||||
| Driving System | X,Y axis manual control, Z-axis Automatic & AUTO FOCUS | ||||
| Illumination | LED light for profile & surface. | ||||
RationalVue Measuring software
Thanks to the light weight structure design, the RIDER series vision measurement machine is offering much wider application range. The RIDER series is able to be used in labs, QC rooms, even R&D center which has really limit space as a desk top precise measuring device. In the mean time, the outstanding measuring accuracy of the RIDER series makes it more adaptable to strict measuring requirement. It is a powerful measuring device for metals, electronics, 3C products, PCB or plastic industries etc.
Comparison based on multiple 3D format
The software allows users to input 3D files of Iges format or CAD files of DXF format. The CAD file can be used for guiding measuring, guiding the software to do comparison between the theoretical values and the measuring results, which increases the measuring efficiency by 2-3 times. The CAD inputting allows the software to achieve ISO geometric tolerance measuring function such as position tolerance, profile tolerance for curve or curved surface.
Supporting laser sensor measuring
The RationalVue software is supporting the KEYENCE and Panasonic laser sensors. RationalVue is offering professional laser measuring function, allows the users to set pace and achieve non-contact measuring function automatically, complete the calculation of height, flatness and profile tolerance of the curved surface
Measure height and flatness by focusing
Thanks to the advanced focusing algorithm from RationalVue, the machine can achieve fast and precise focus operation to the parts, finish the focusing process within 2-3 seconds. The repeatability of the focusing can be up to 0.003mm, which is able to be used for measuring of height or flatness.
Special edge measuring
Burrs filtering
RationalVue is able to filter the burrs of the measuring parts edge,
increase the measuring accuracy. RationalVue is able to filter the
burrs of the measuring parts edge, increase the measuring accuracy
