# ZGScan™ series

news image

ZGScan™Smart handheld laser 3D scanner

ZGScan™ series smart handheld laser 3D scanner, our fully proprietary product granted with multiple national invention patents and certified by National Institute of Metrology China in respect of accuracy, greatly meets the application demands of product R&D and design personnel as well as quality control department and provides them with efficient and reliable 3D data acquisition method.


Features

news image

Industrial measuring accuracy

Up to 0.02 mm

news image

Resolution

Up to 0.05 mm

news image

Third-party traceability certification

news image

Freedom

All-dimensional scanning of object, not restricted by part dimensions materials, color and complexity, etc

news image

Handheld scanning

External measuring arm or any clamp not required. Easy operation; any operator will know how to use it within one hour

news image

Triangular self-positioning technology part freely movable

Fixed installation not required, assured high accuracy

Application Areas

news image

3D Printing

  • Formimg Test
  • Reverse Design into CAD file of Original Objects
  • Contrastive Analysis of Finished Products
  • Directly Processing 3D Printing with Scanned Data
news image

Aerospace

  • Fast Forming
  • MRO & Damage Evaluation
  • Aerodynamics & Stress Analysis
  • Accessories & Detection and Adjustment on assembly
news image

Die & Mould

  • Virtual Assembly
  • Reverse Engineering
  • Quality Control & Inspection
  • Wear Analysis & Maintenance
  • Fixture Design & Adjustment
news image

Automobile

  • Competitive Analysis
  • Vehecle Modification
  • Custom-made of Inner Decorations
  • Automobile Modeling
  • Quality Control & Measure of Accessories
  • Simulation & Finite Element Analysis (FEA)
news image

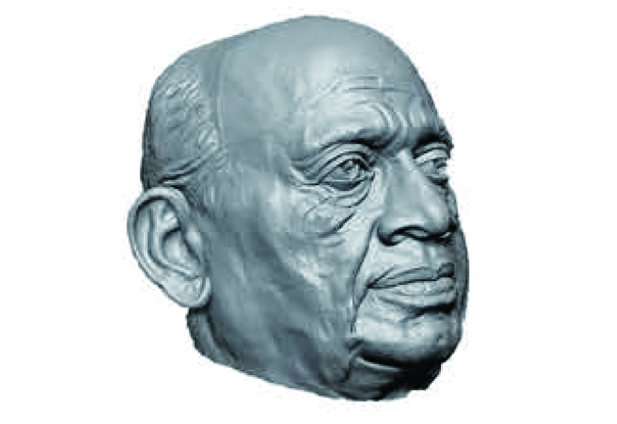

Other

  • Education & Scientific Research
  • Medical Heathcare
  • Cultural Relic & Furnishings
  • Industrial Design
  • Reverse Design
  • VR/AR

Specification

Model ZGScan 717 Plus ZGScan 717 ZGScan 313
WEIGHT 0.83 kg
DIMENSION 310 × 147 × 80 mm
MEASUREMENT RATE 480,000 measurements/s 205,000 measurements/s
SCANNING AREA 275 × 250 mm
LIGHT SOURCE 7 laser crosses (+ extra 1 line) 3 laser crosses (+ extra 1 line)
LASER CLASS 2M(eye-safe)
RESOLUTION Up to 0.05 mm
ACCURACY Up to 0.02 mm Up to 0.03 mm
VOLUMETRIC ACCURACY 0.02 + 0.06 mm/m 0.03 + 0.06 mm/m
VOLUMETRIC ACCURACY (combined with Photshot) 0.02 + 0.025 mm/m 0.03 + 0.025 mm/m
STAND-OFF DISTANCE 300 mm
DEPTH OF FIELD 250 mm
OUTPUT FORMATS .asc, .stl, .obj, .ply, .txt, .xyz etc,customizable
CONNECTION STANDARD USB 3.0
OPERATING TEMPERATURE -20 ~ 40 ℃
OPERATING HUMIDITY 10 ~ 90%
COMPATIBLE SOFTWARE 3D Systems (Geomagic Solutions)、InnovMetric Software (PolyWorks)、Dassault Systemes (CATIA V5 / SolidWorks)、PTC (Pro / ENGINEER)、Siemens (NX / Solid Edge)、Autodesk (Inventor、Alias、3ds Max、Maya、Softimage)
