# HyperScan series
HyperScan Optical Tracking 3D Scanner
Optical metrology provides measurement accuracy that is insensitive to the instabilities of the environment, making the HyperScan the prime choice for shop-floor quality control metrology.
Features
- Multi-function buttons for easier interation with the software.
- Scan without positioning targets.
- Measurement Volume: 17.6 m³.
- STAND-ALONE: No fixture.
- Dynamic Referencing.
- True Accuracy, Accuracy up to 0.02mm.
- Reliable equipment support Carbon fiber composite Archimedes structure.
- 7 X 7 crossed laser+1 extra laser.
- Black, High reflective and Colorful surface can be scanned without any pretreatment.
Application Areas
Education & Research

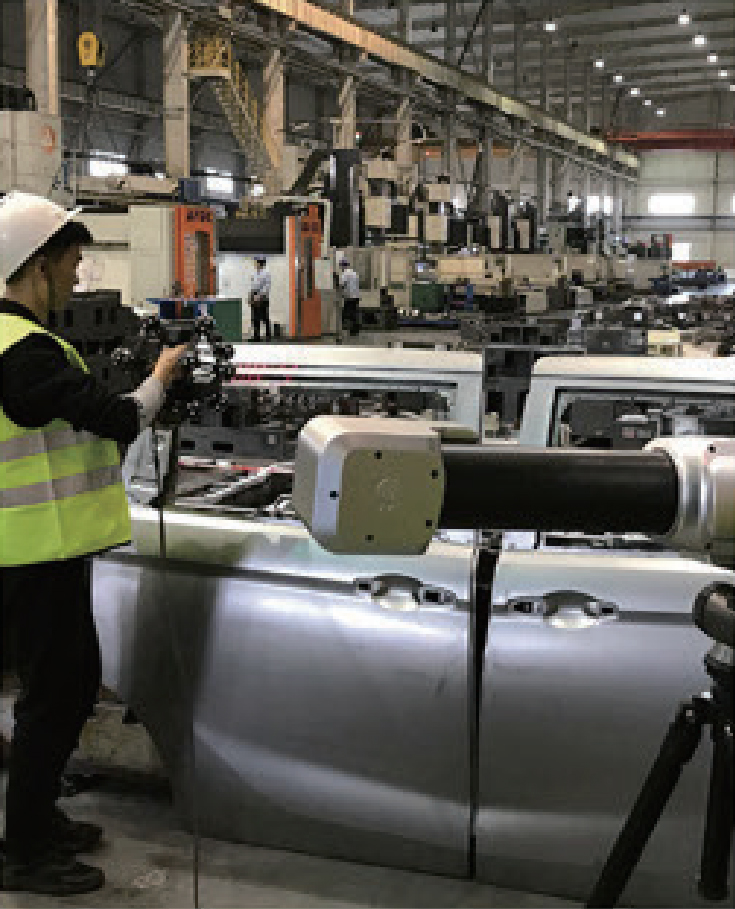

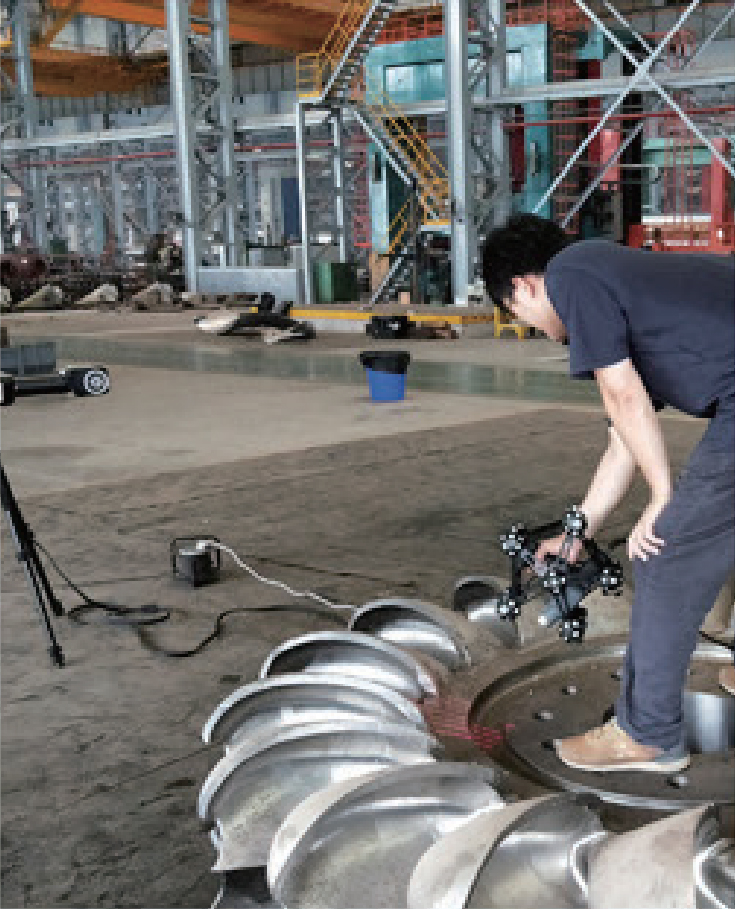

Heavy Machinery
Reverse Design
Mold Inspection
Aerospace

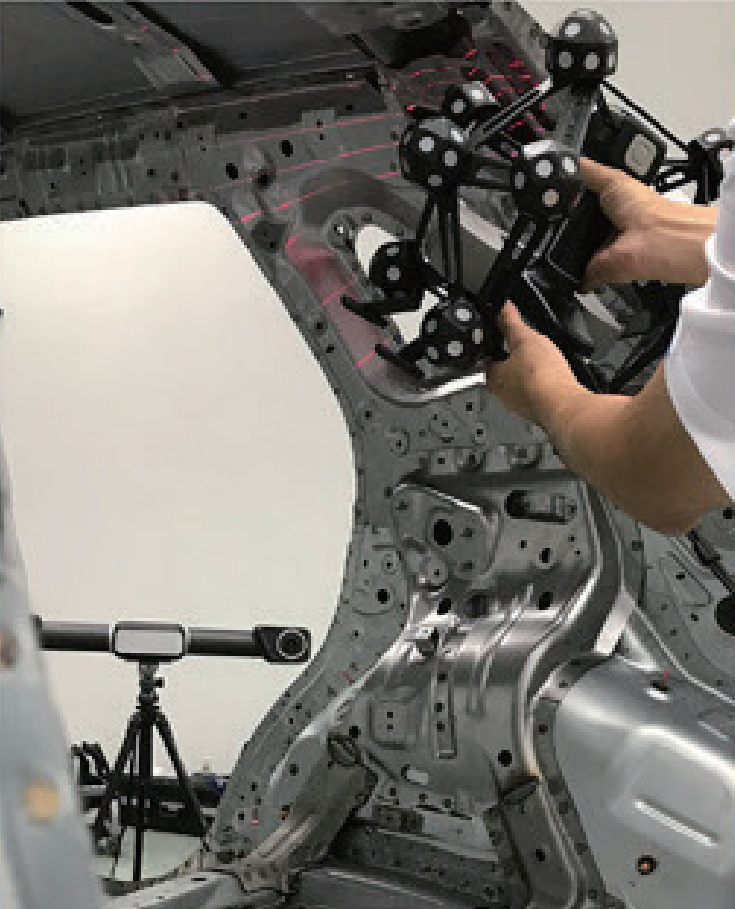

Automobile
Specification
| MODEL | HyperScan 717 Plus | HyperScan 717 | HyperScan 313 | |
|---|---|---|---|---|
| WEIGHT | 1.5 kg | |||
| ACCURACY | Up to 0.02mm | Up to 0.03mm | Up to 0.03mm | |
| VOLUME ACCURACY | 9.6 m2 | 0.064 mm | 0.086mm | 0.086mm |
| 17.6m2 | 0.078mm | 0.122mm | 0.122mm | |
| RESOLUTION | 0.05mm | |||
| MEASURING RATE | 480,000 measure/s | 480,000 measure/s | 205,000 measure/s | |
| LASER AREA | 275×250 mm | 275×250 mm | 225×250 mm | |
| REFERENCE DISTANCE | 300 mm | |||
| DEPTH OF FOCUS | 250 mm | |||
| TRANSMISSION | USB 3.0 | |||
| OPERATING TEMPERATURE | 0 - 40 ℃ | |||
| OPERATING HUMIDITY | 10 - 90% | |||
| OUTPUT FORMAT | .stl, .obj, .asc, .ply, .txt, . xyz etc., customizable | |||
| COMPATIBLE SOFTWARE | 3DSystem (Geomagic Solution), InnovMetriv Software (PolyWorks) Dassault Systemes (CATIAV5 and SolidWorks), PTC (Pro/ENGINEER) Autodesk (Inventor, Alias, 3ds Max, Maya, Softimage) Siemens (NX and Solid Edge). | |||
